Tanker Pumps

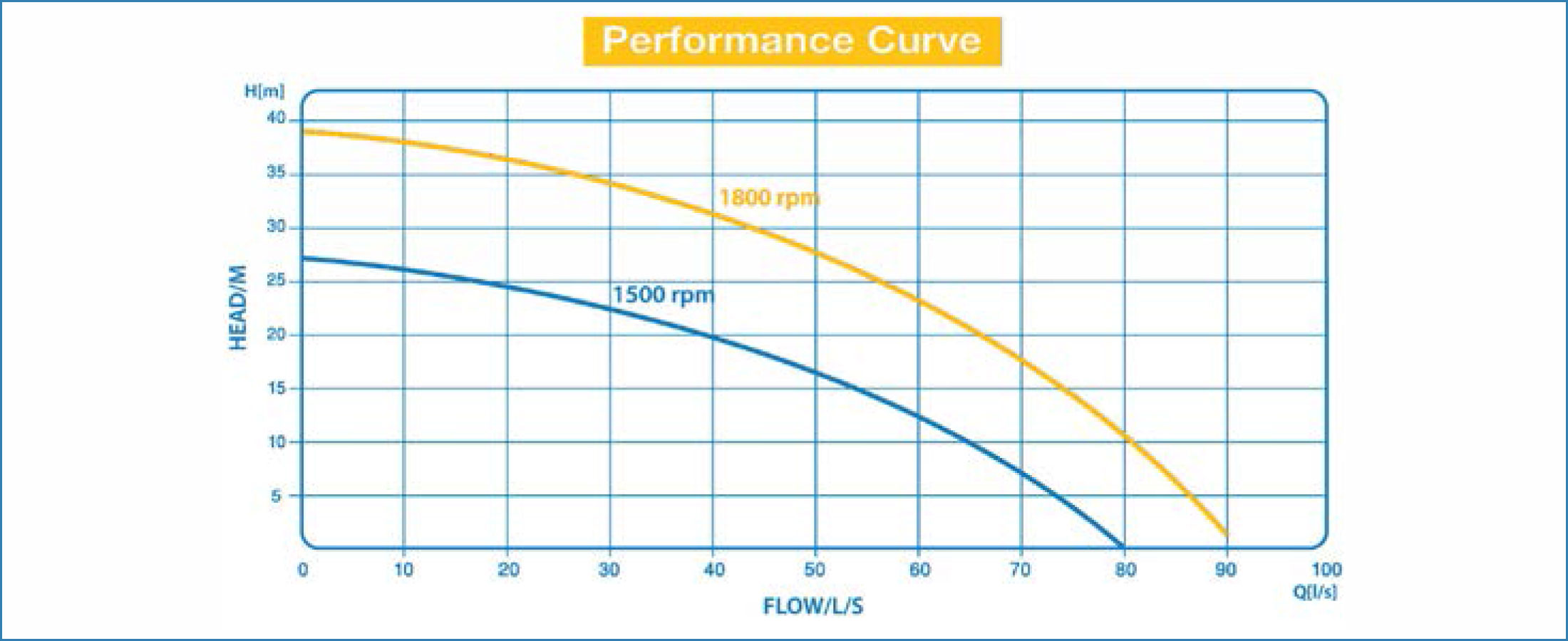

Performance
| Max. Head |
: |
38m |
| Max. Flow |
: |
90 Us 324 m3 / hr |
| Max. Solids |
: |
50mm |
Pipe Connection
| Suction |
: |
150mm (6") |
| Discharge |
: |
150mm (6") |
Pump Material
Main pump SG grade iron
Weight (Typical)
Approx. 900 kg without fuel
Chassis
2 wheeled and 4 wheeled skid mount types
Fuel Tank
80 - 125 litters with cleaning and flushing facility - 24hrs running

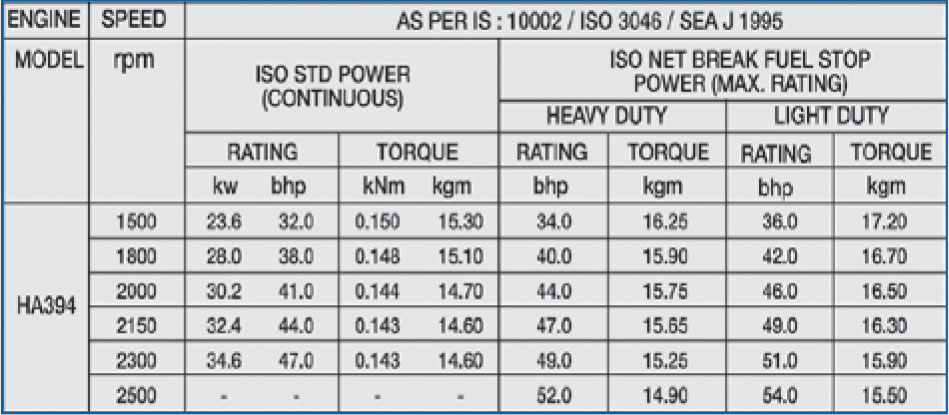

Engine Options
| a) |
HA394 KIRLOSKAR air cooled, electric start |
|
Suction |
: |
150mm (6") |
|
Rated Power |
: |
32-38 bhp. |
|
Rated Speed |
: |
1500-1800 rpm |
| b) |
LISTER TR3 air cooled, electric start |
|
Rated Power |
: |
21-35 bhp |
|
Rated Speed |
: |
1500-2500 rpm |
Prime System
Flood lubricated rotary vacuum pump of nominal displacement 60 cfm incorporating non-return valve.
Shaft Seal
- Sykes patented vacuum/pressure seal
- Spring loaded
- Easy repacking
- Single ring of packing
- No adjustments necessary
- Chrome oxide coating on wear ring
