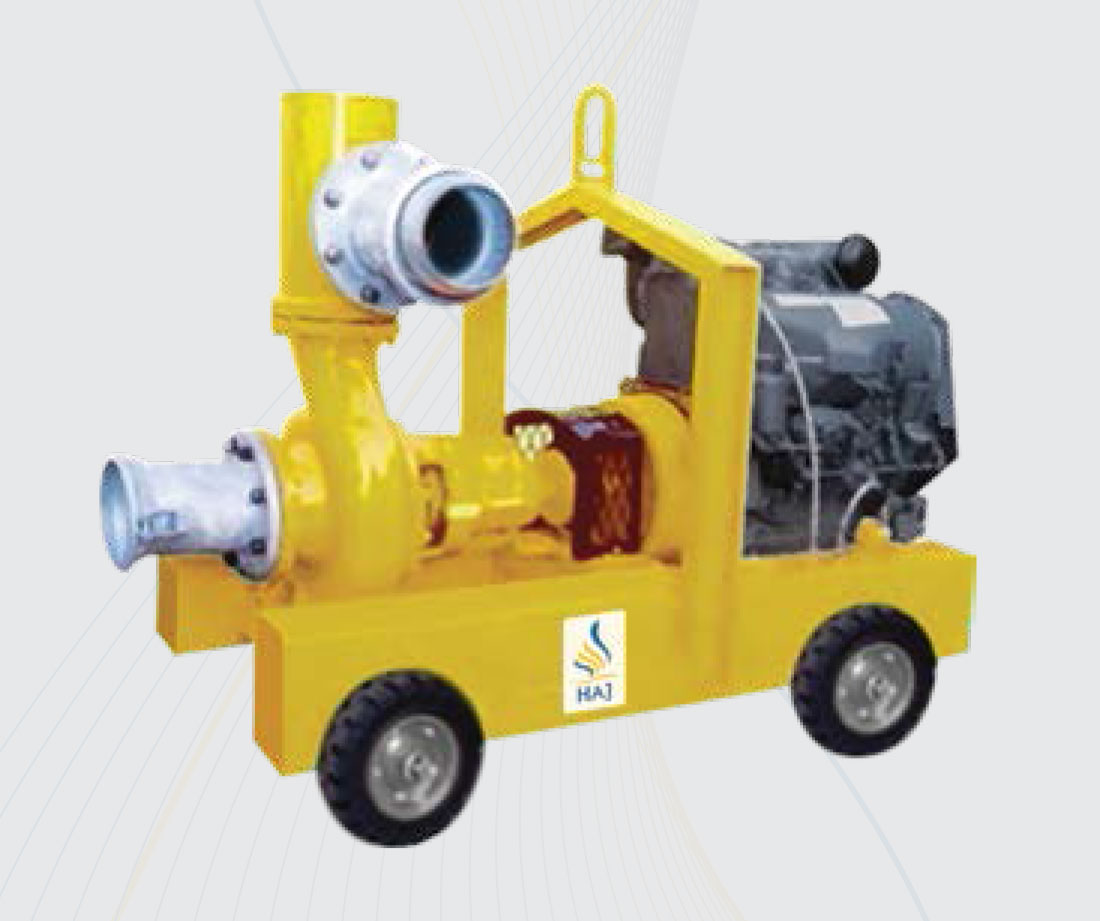

6” Booster Pump WP 150
Pump Specification
| Pump capacity |
: |
400 cub m3/hour |
| Pump suction and Discharge (6"x6") |
| Volute housing |
: |
Cast Iron |
| Impeller |
: |
Stainless Steel |
| Shaft |
: |
Stainless Steel |
| Mechanical Seal |
: |
John Crane (U.K.) |
| All Heavy Duty Hoses and Nipples. |
Engine Specification
Kirloskar diesel engine type: HA 394, 3 cylinder, air cooled, 34 kw at 2000 rpm, with starter motor, charging alternator, oil bath air filter, fuel injection pump, oil filter, engine mounted exhaust silencer, manual shut off, wire harness and starting panel.
Application
Booster pumps are basically used to boost the water in the existing discharge line to an extended length. They help in the smooth running of the system and reduce the back pressure. these are available in 6" & 8" sizes.
Shaft
Manufactured in Stainless Steel GR 316 material Machined to precise dimension & dynamically balanced to give ideal life to seals & bearings.
Volute Housing
Made with Stainless Steel material GR 316. The Volute is made of a special design which allows maximum head and discharge.
Impeller
Close type impeller, Dynamically balanced, Made in Stainless Steel material to withstand high corrosion.
Vacuum Pump
Vacuum priming by oil lubricated rotary sliding vane pump. High air handling capacity to maximize Dewatering efficiency. 70 cfm heavy duty pump.
Discharge Head Assembly
Constructed in fully Stainless Steel material with polyurethane discharge ball giving maximum durability.
