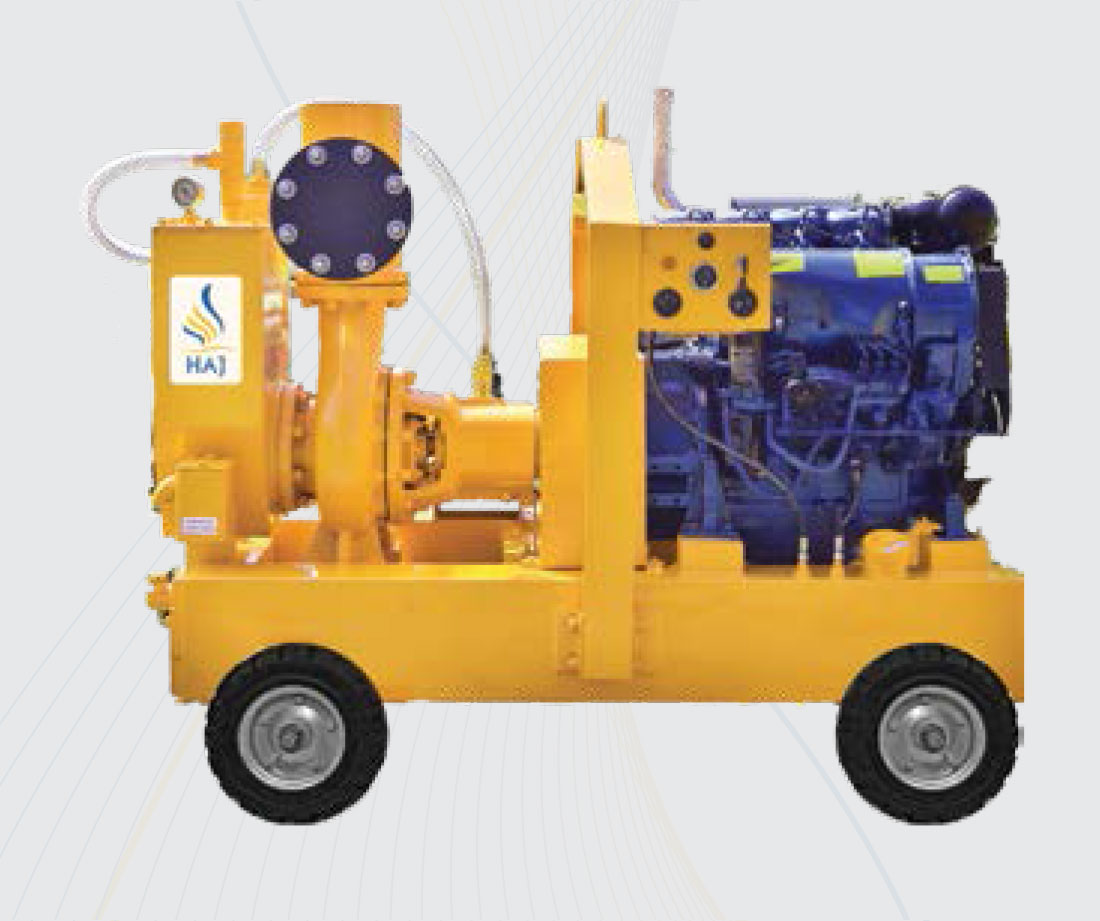

8” Dewatering Pump WP 200
Engine Specification
Kirloskar diesel engine type: HA 494, 4 cylinder, air cooled, 34 kw at 2000 rpm, with starter motor, charging alternator, oil bath air filter, fuel injection pump, oil filter, engine mounted exhaust silencer, manual shut off, wire harness and starting panel.
Pump Specification
| Model |
: |
WP - 200 |
| Vacuum Cap. |
: |
70 cfm |
| Max. Water Flow |
: |
550 m3/hr |
| Suction x Discharge |
: |
8” x 8” (200 mm x 200 mm) |
| Max. Head |
: |
40 mtr. |
| Vacuum Lift |
: |
9 mtr. |
| Shaft Seal |
: |
Mechanical Seal |
| Volute housing |
: |
Cast Iron |
| Impeller |
: |
Stainless Steel |
| Stuffing Box |
: |
Stainless Steel |
| Shaft |
: |
Stainless Steel |
M.S. Priming tank, Priming tank filter assembly Flanges made of Mild Steel.
8" Discharge head and its flanges - Mild Steel.
8" Polyurethane ball
|
| Mechanical Seal |
: |
John Crane (U.K.) |
| Vacuum Motor |
: |
Heavy duty 70 CFM with original parts |
| All Heavy Duty Hoses and Nipples |
