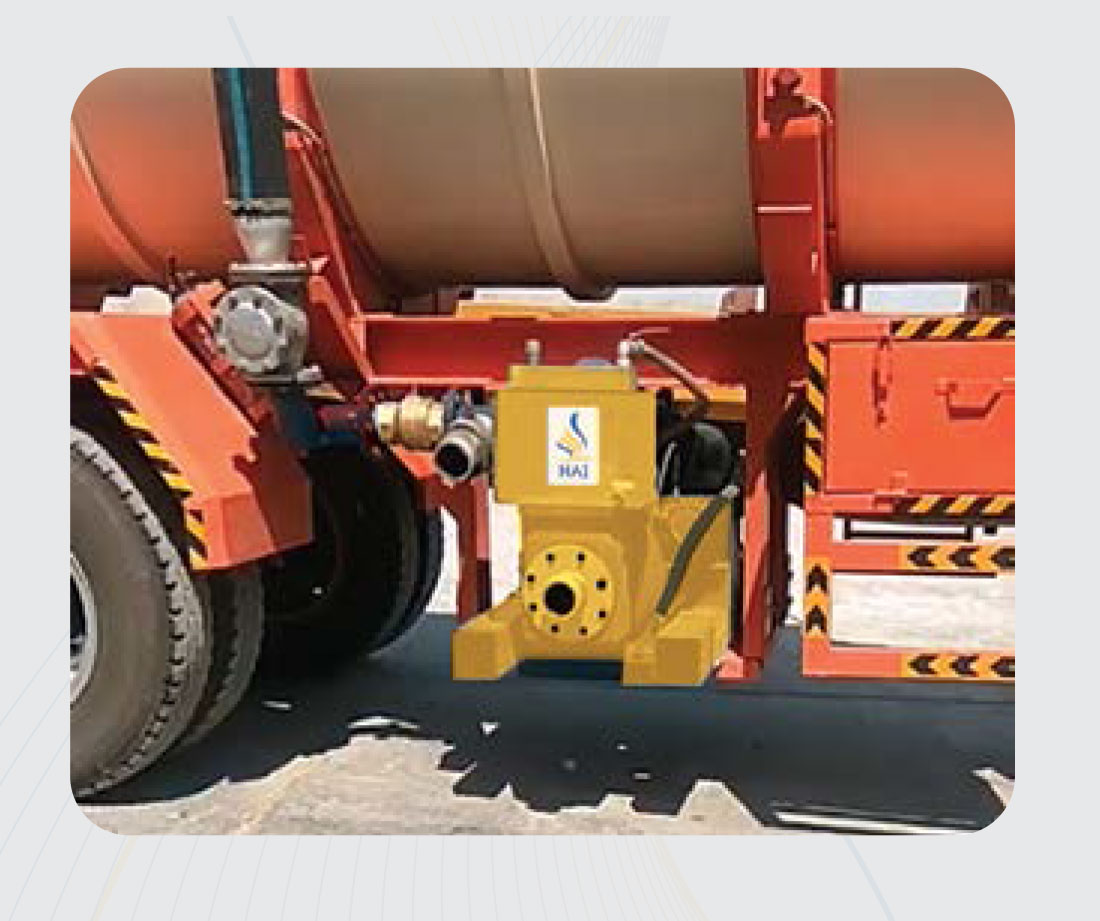

Tanker Pumps - Miller Type
Pump Specification
| Pump capacity |
: |
350 cm3 /hour |
| Pump suction and discharge (6"x6") |
| Total head |
: |
25 mtrs |
| Vacuum lift |
: |
8.5 mtrs |
| Volute housing |
: |
Cast Iron |
| Impeller |
: |
Stainless Steel |
| Stuffing Box |
: |
Stainless Steel |
| Shaft |
: |
Stainless Steel |
M.S. Priming tank, Priming tank filter assembly flanges made of Mild Steel.
6" Discharge head and its flanges - Mild Steel.
6" Polyurethane ball
|
| Mechanical Seal |
: |
John Crane (U.K.) |
| Vacuum Motor |
: |
Heavy duty 70 CFM with original parts |
| All Heavy Duty Hoses and Nipples. |
High Performance, Low Maintenance
Sykes Univac reputation for high performance and low maintenance emanate from a carefully developed range of design features resulting from years of research and development. At the heart of the unit the impeller is mounted on a large diameter pump shaft with heavy duty bearing arrangement incorporating a roller bearing at the drive end and a heavy duty thrust bearing at the other. The reduced overhang between bearings and impeller means less shaft deflection & no problem without of balance forces.
- General purpose-handles everything from clear water to heaviest sludge and slurry.
- Hard wearing cast iron parts and corrosion resistance materials throughout.
- Two wheeled site trailer made from hollow sections and utilized as a fuel tank giving 24 hrs running.
- Sustained performance • Ease of maintenance shaft seals can be changed in minutes.
- Automatic priming and re-priming.
- Hours of unattended operation or intermittent flow.
- Low center of gravity easy and stable to tow.
Optional
- Mechanical seal
- Belzona coating
- Bronze interior parts
- Customized control panel comprising all engine prote
- Four wheeled site trailor/skid mounted version
Automatic Priming
Sykes priming & re-priming is by flood-lubricating rotary sliding vane vacuum pump with high flow rate of air.
