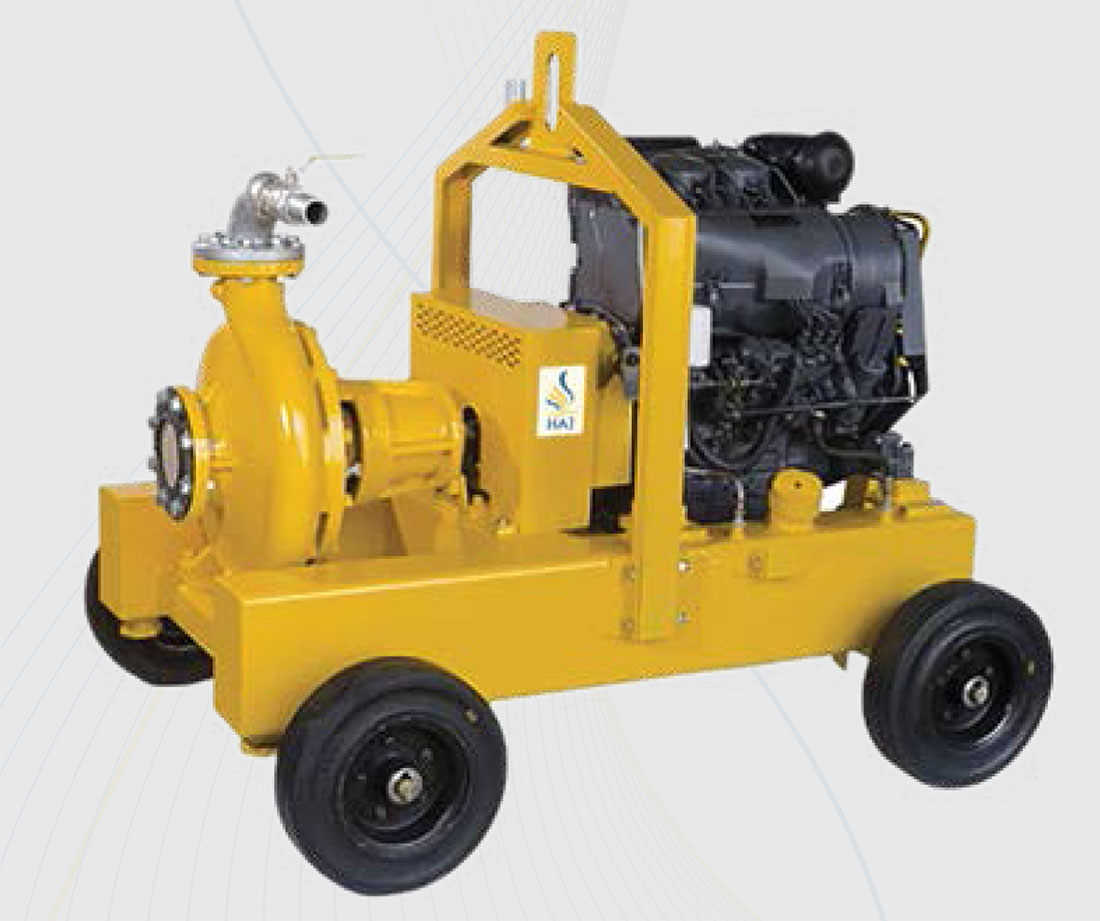

High Pressure Jetting Pump

Application

High pressure mobile pumps used extensively by Contractors & Municipalities. Efficient performance and simple design coupled to use for many site tasks make these pumps a favorite with users who require high utilization, high return on capital, and low running costs.

Benefits

Wide Application- used for jetting,dewatering, drain flushing, tank cleaning, and emergency fire pumping. Hard Wearing Materials-Cast Iron, Bronze, and SS Gr 316 Two / Four wheel road trailer easily towed to side by pickup vehicle. Long to reliability, with simple maintenance procedures, emotive high and low flow pumps Low center of Gravity making it

Engine Specification

Deutz (Germany)diesel engine type: F31,12,3 cylinder, air cooled, 34 kw at 2000 rpm, with starter motor, charging alternator, oil bath air filter, fuel injection pump, oil filter, engine mounted exhaust silencer, manual shut off, wire harass and starting panel.

Pump Performance

Max head: 50 m
Max flow: 75 cu mtr / hr.

Pipe Connection

Suction: 100 mm PN 10
Discharge: 50 mm PN 10

Materials

Volute: SG Cast Iron / SS 316
Impeller: SS Cast Iron / Bronze

Weight

JP 100: 750 Kgs

Chassis

4 wheel site trailer
2 wheel road chassis (Optional)

Fuel Tank Capacity

150 liters with cleaning facility

Power Units

Deutz, Electric Motor

Shaft Seal

Mechanical Seal
