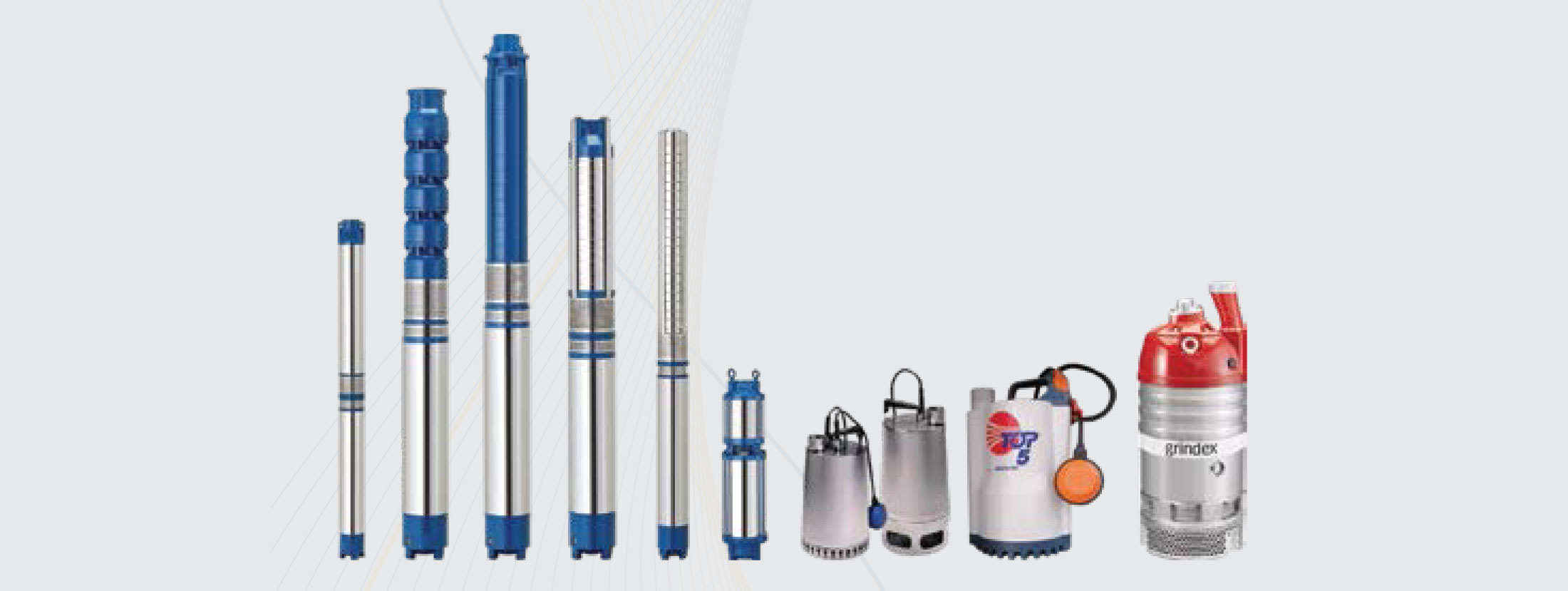

ES Series Electric Submersible Pumps
Materials
Materials : Standard specification includes Stainless Steel inner & outer casings, high chrome impeller cast iron volute Alternative optional material specifications (SS31 6L etc).
Applications
Extensively used for dewatering of construction projects, supply of water from irrigation wells, & for general sump pumping-readily portable, these pumps can be moved between sites to meet differing requirements.
Robust Efficient Design
Heavy duty construction, using well proven uncomplicated design-Double casing water jacket provides continuous motor cooling. Top discharge reduces pump diameter Safety features include cut-outs to protect against over heating and excessive motor current.
High Performance

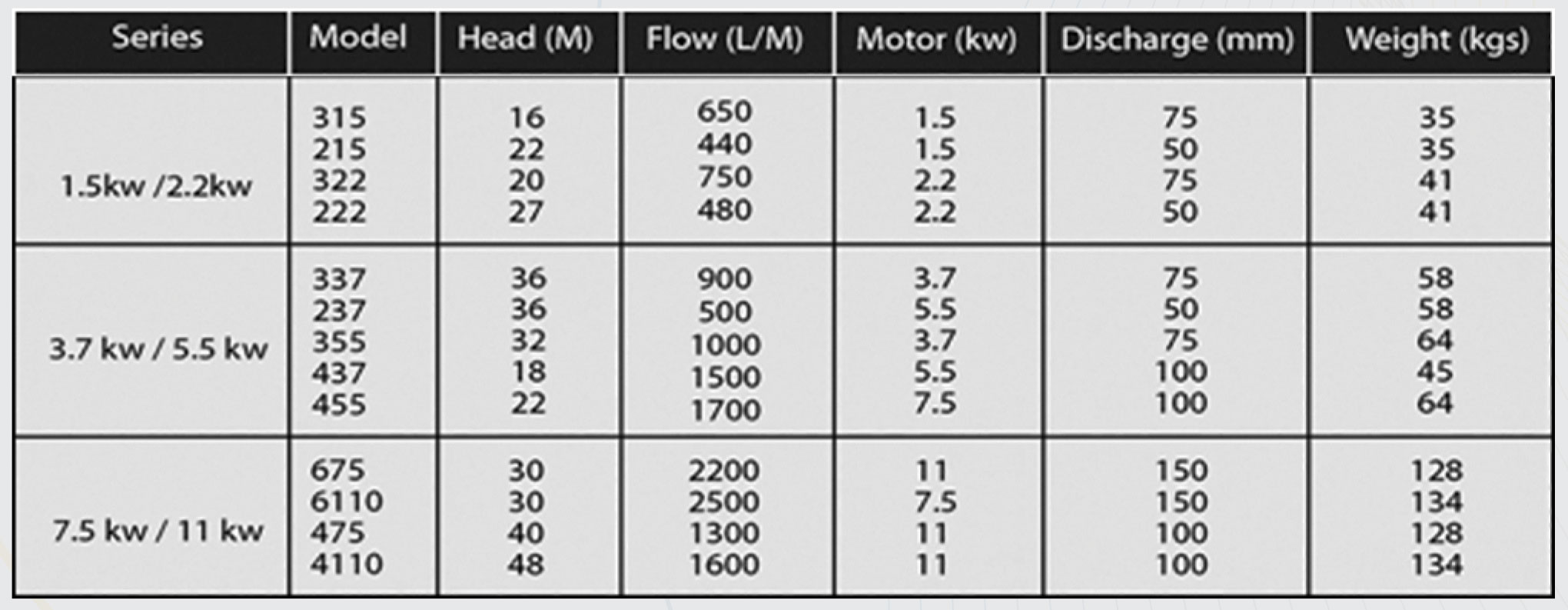

Available from a range of different models to Suit required flow & head. Available with automatic system to control water level in sumps or pits (optional).
Power Units
Dry run asynchronous motor 3ph 2 pole 50 Hz 2850 rpm) or 60 Hz (3450rpm) IP 68 Protection Class F insulation, Single phase option 1.5 kw motor 220/380/440 V supply.
Shaft Seal
Twin oil bath mechanical seal arrangement. Upper seal Carbon/Ceramic Lower seal Silicon Carbide / Silicon Carbide.
