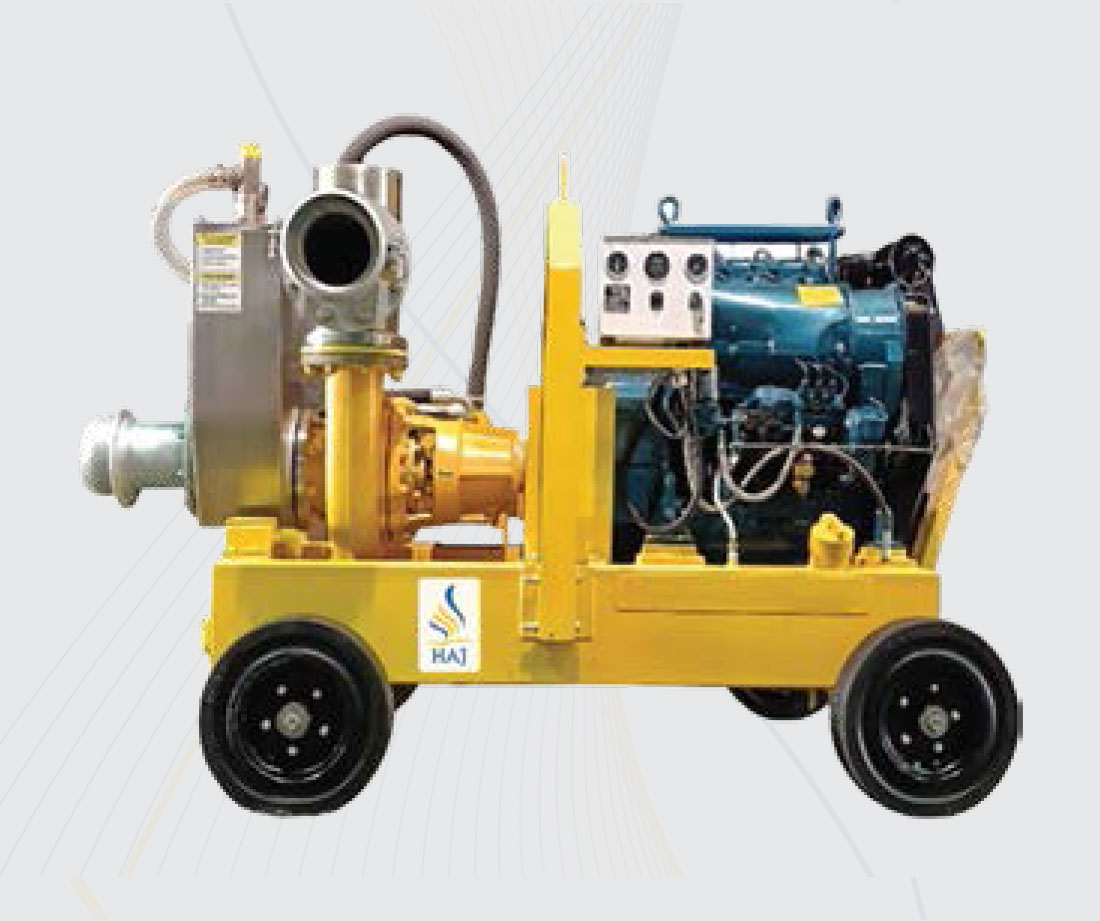

6” S.S. Dewatering Pump WP 150
Application
Heavy duty N&K WP model provides a range of high and low output pumping system for water. N&K pumps are designed with a continuous effort on Research and Development. The N&K WP pumps have a simple outlook, which is backed with efficient performance. N&K WP pumps are for those users who require high utilization, high return on capital and low-running costs. N&K WP model is used extensively by Contractors and Municipalities. N&K WP model enjoys the benefit of the specially designed Volute and impeller which provide a smooth, high output flow rate and maximum suction and discharge head.
Shaft
Manufactured in Stainless Steel GR 316 material. Machined to precise dimension and dynamically balanced to give ideal life to seals and bearings.
Volute Housing
Made with Stainless Steel material Gr 316. The Volute is made of a special design which allows maximum head and discharge.
Impeller
Close type impeller, Dynamically balanced, Made in Stainless Steel material to withstand high corrosion.
Vacuum Pump
Vacuum priming by oil lubricated rotary sliding vane pump. High air handling capacity to maximize Dewatering efficiency. 70 cfm heavy duty pump.
Discharge Head Assembly
Constructed in fully Stainless Steel material with polyurethane discharge ball giving maximum durability.
Priming Tank
Fabricated in 100% Stainless Steel GR 316 material to resist high corrosive liquids and ensuring proper functioning with maximum life
Engine Specification
Kirloskar diesel engine type: F3L 912,3 cylinder, air cooled, 34kw at 2000 rpm,with starter motor, charging alternator, oil bath air filter, fuel injection pump, oil filter, engine mounted exhaust silencer, manual shut off, wire harness and starting panel.
